Smith Machine S9000 | Multipower Machine

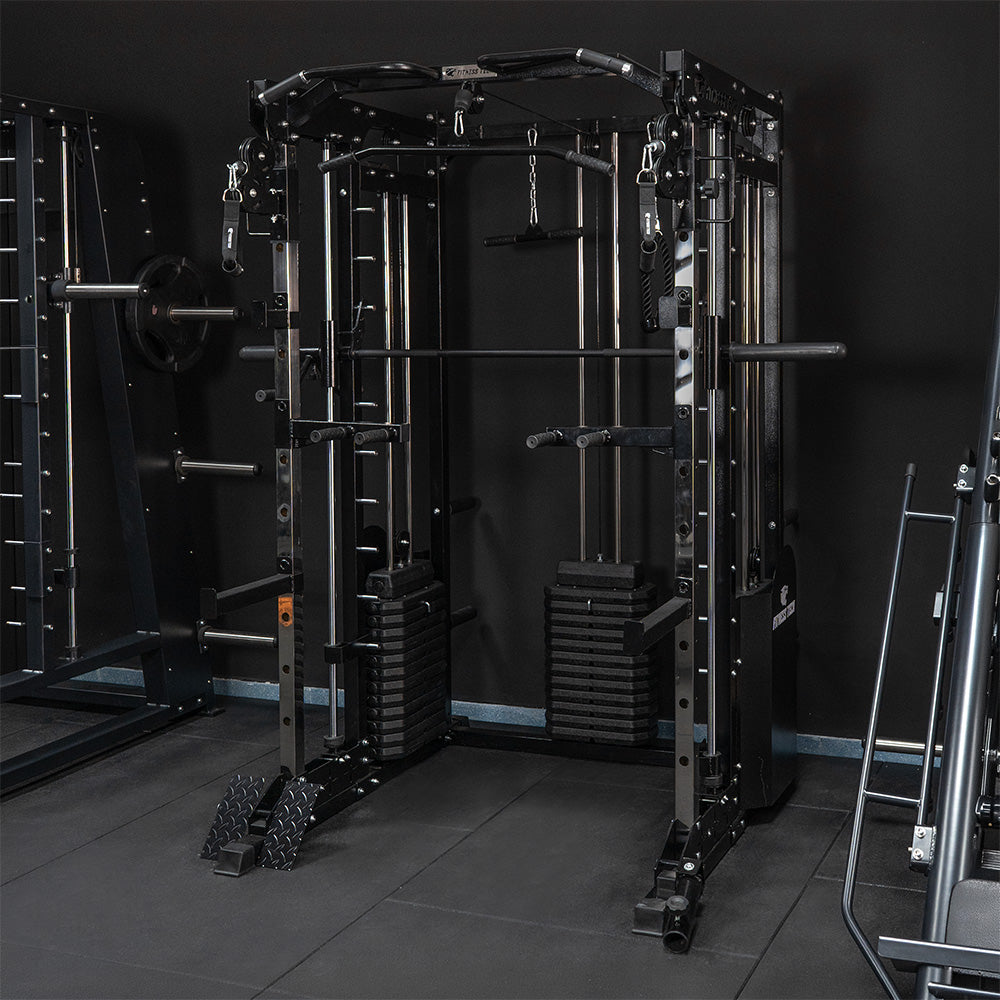

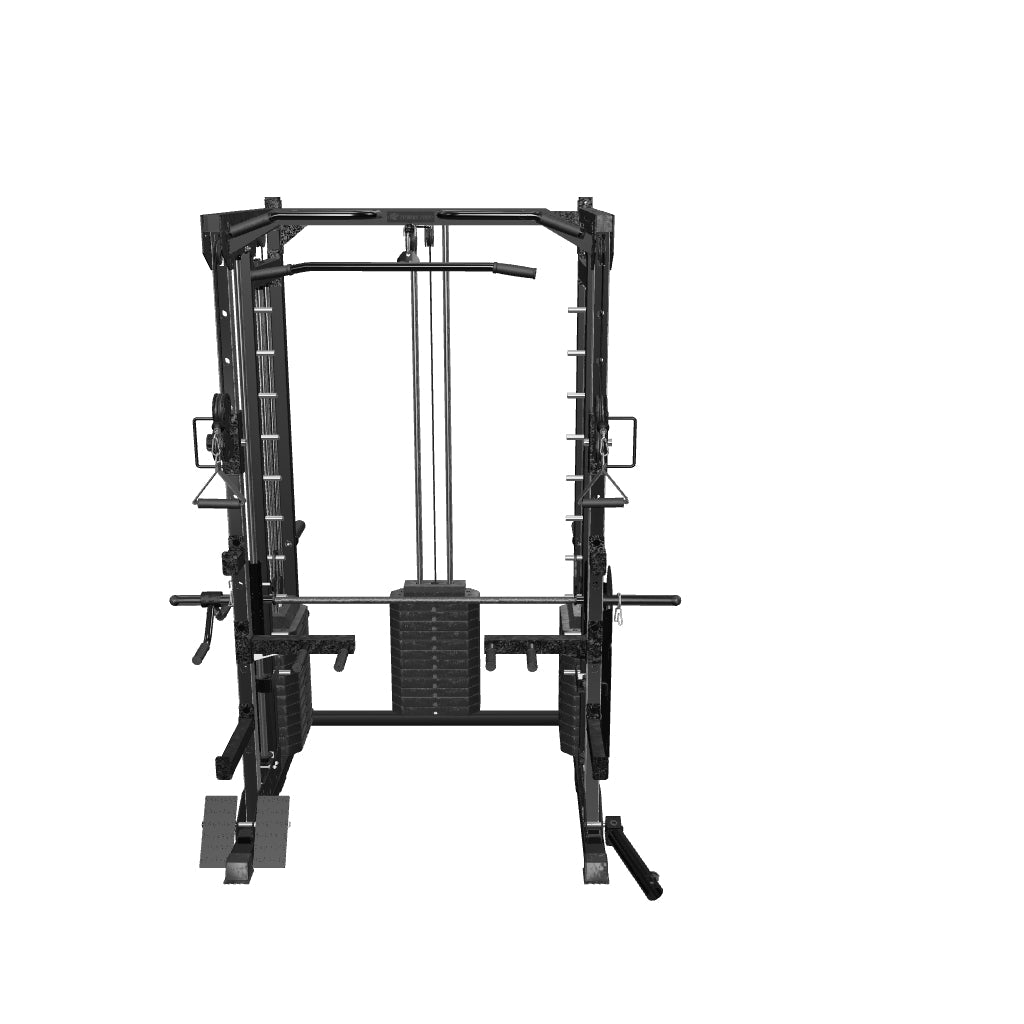

Smith Machine S9000: Advanced Smith machine with 3 weight stacks

The Smith Machine S9000 is an advanced training station designed for those looking to set up a complete and powerful home gym. It combines a guided Smith bar, side pulleys, and an independent central pulley to deliver a smooth, stable, and versatile strength-training experience. Its reinforced steel frame and integrated loading system allow for varied, comfortable, and safe workouts within a single compact piece of equipment.

With three integrated weight stacks, a total load of 300 kg, and an optimized working design, the S9000 delivers a smooth response with every repetition and exceptional adaptability. From basic strength exercises to more advanced routines, this Smith machine adapts to different levels and goals, providing a complete workout in any home space.

For targeted glute training using the hip thrust, we recommend using the Hip Thrust from the Pro Tech Series, specifically designed for this movement to provide a more comfortable, stable, and focused execution.

Multifunction Smith machine with guided bar, side pulleys, and 1:1 central pulley

The S9000 brings everything needed into a single machine to train the entire body: squats, bench presses, pulldowns, rows, flyes, pull-ups, and functional movements. Its 1:1 ratio central pulley allows users to work with direct loads and more powerful movements, while the side pulleys provide smooth, controlled travel for targeted and isolation exercises. This combination makes it possible to create balanced, varied, and efficient routines without the need for additional equipment.

Features

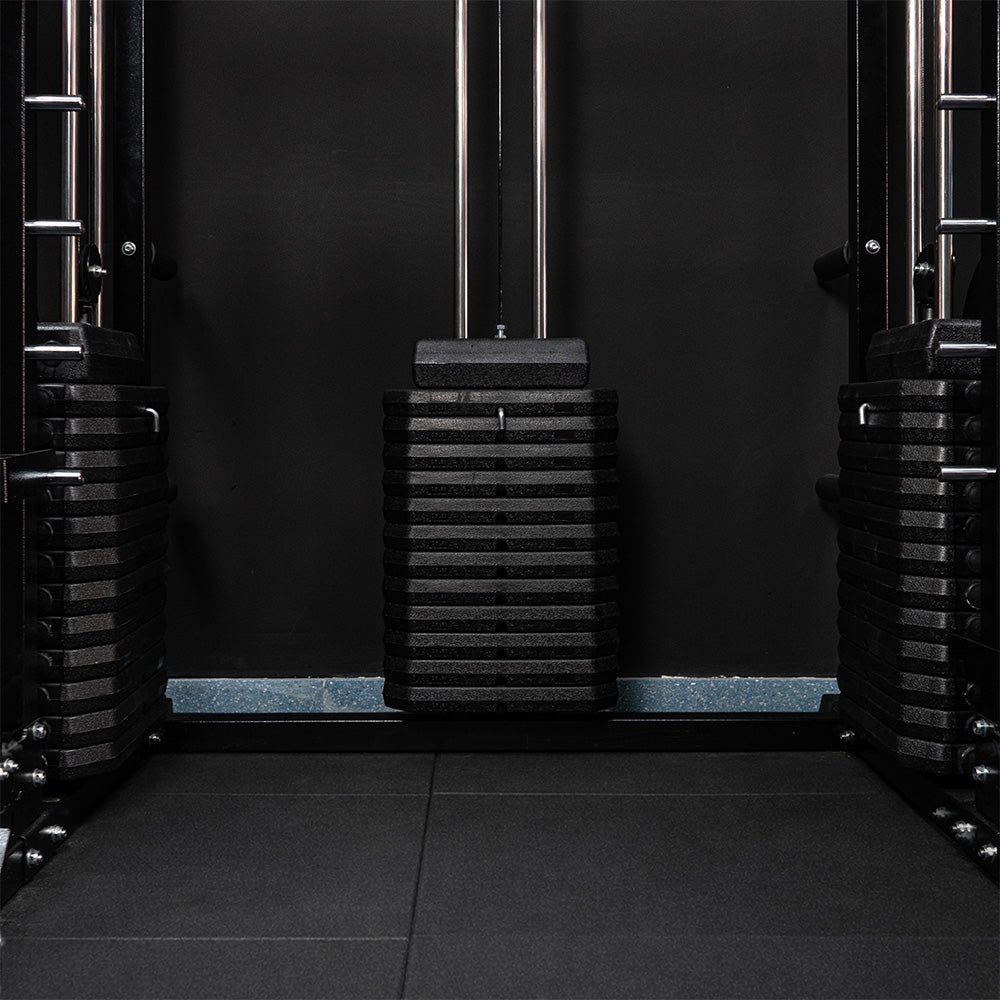

• Three integrated weight stacks (300 kg total): allow the load to be adjusted quickly and precisely, adding greater variety and fluidity to training without the need for additional weight plates.
• Central pulley with a 1:1 ratio: ideal for heavy rowing exercises, direct pulldowns, and movements that require working with the actual weight.
• Side pulleys with a 2:1 ratio: provide smooth, controlled movement for targeted back, chest, shoulder, and arm exercises.
• Guided Smith machine bar with 25/50 mm coupling: perfect for squats, bench presses, and strength exercises with greater stability and safety. It is permanently integrated into the frame and is not removable.
• Full-range pulley system: allows training on both the high and low pulley without limitations.

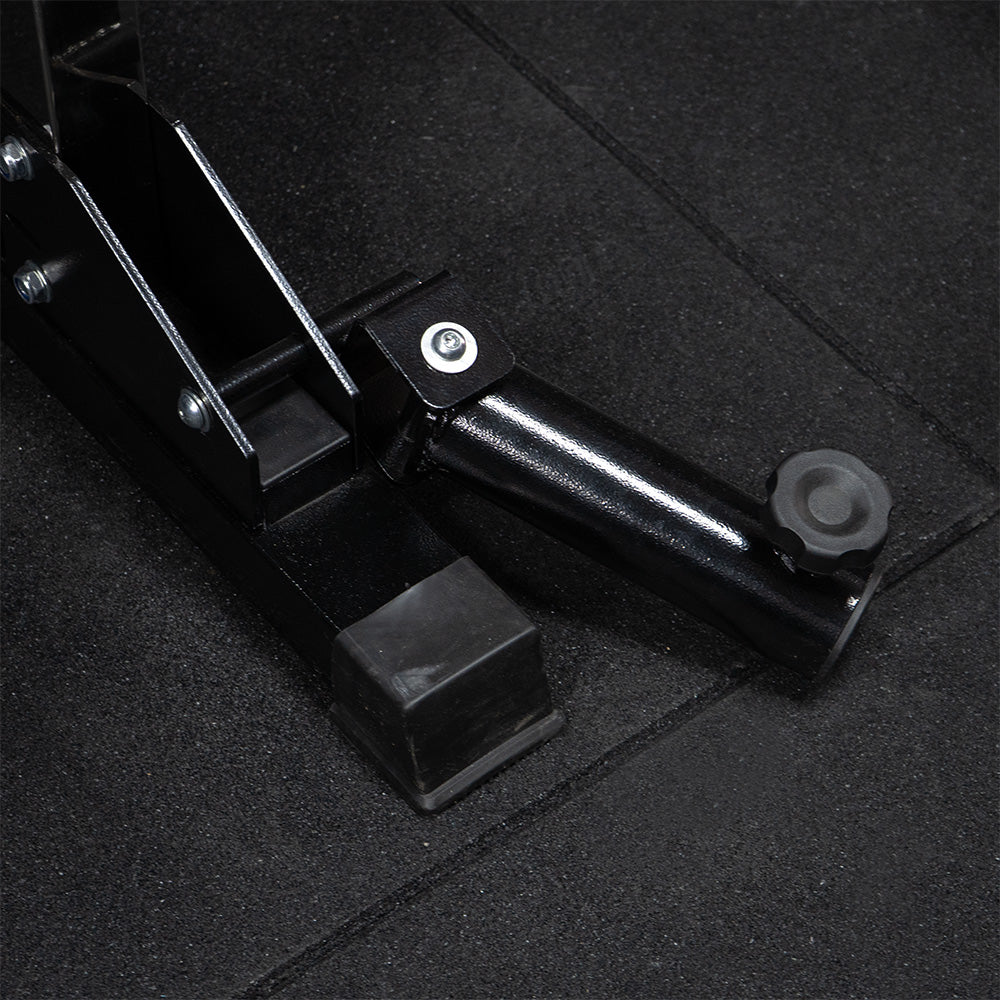

• Included landmine: expands functional training options, allowing rows, diagonal presses, and rotational movements.
• High-strength braided steel cables: ensure smooth pulling, durability, and stability with every repetition.
• Reinforced steel frame: designed to provide maximum stability during intensive home workouts

Specifications

• Dimensions: 135 × 147 × 217 cm
• Weight: 456.9 kg
• Total counterweight: 300 kg (100 kg in each of the 3 towers)
• Number of plates per tower: 18
• Total number of plates: 54
• Weight of each plate: 5.6 kg
• Plate material: plastic coating, cement filling, and calibrated plates
• Smith machine bar length: 190 cm
• Smith machine bar overhang: 21.5 cm on each side

• Smith machine bar weight: 10 kg
• Recommended load on the Smith machine bar: 150 kg
• Maximum load supported by the Smith machine bar: 200 kg
• Central pulley: 1:1 ratio
• Lateral pulleys: 2:1 ratio
• Steel cable diameter: 5 mm
• Steel frame: 50 × 50 × 2 mm tubing

Included accessories

• Complete handle set: includes a straight bar, triceps rope, individual handles, and chains to expand exercise combinations on the high and low pulleys.
• Integrated landmine: perfect for functional pushing, pulling, and rotational exercises.
• Smith machine bar guided and integrated into the frame.
• Multi-grip pull-up bar positioned at the top.
• Integrated weight towers with included plates (300 kg total).
• Supports and locks: J-cups, lateral safety bars, auxiliary supports, and adjustment components for working with the Smith machine bar or free bar with complete stability.

• Four integrated weight plate holders in the frame

Manual and Maintenance

• Manual
• Recommended maintenance

S8000 vs S9000
