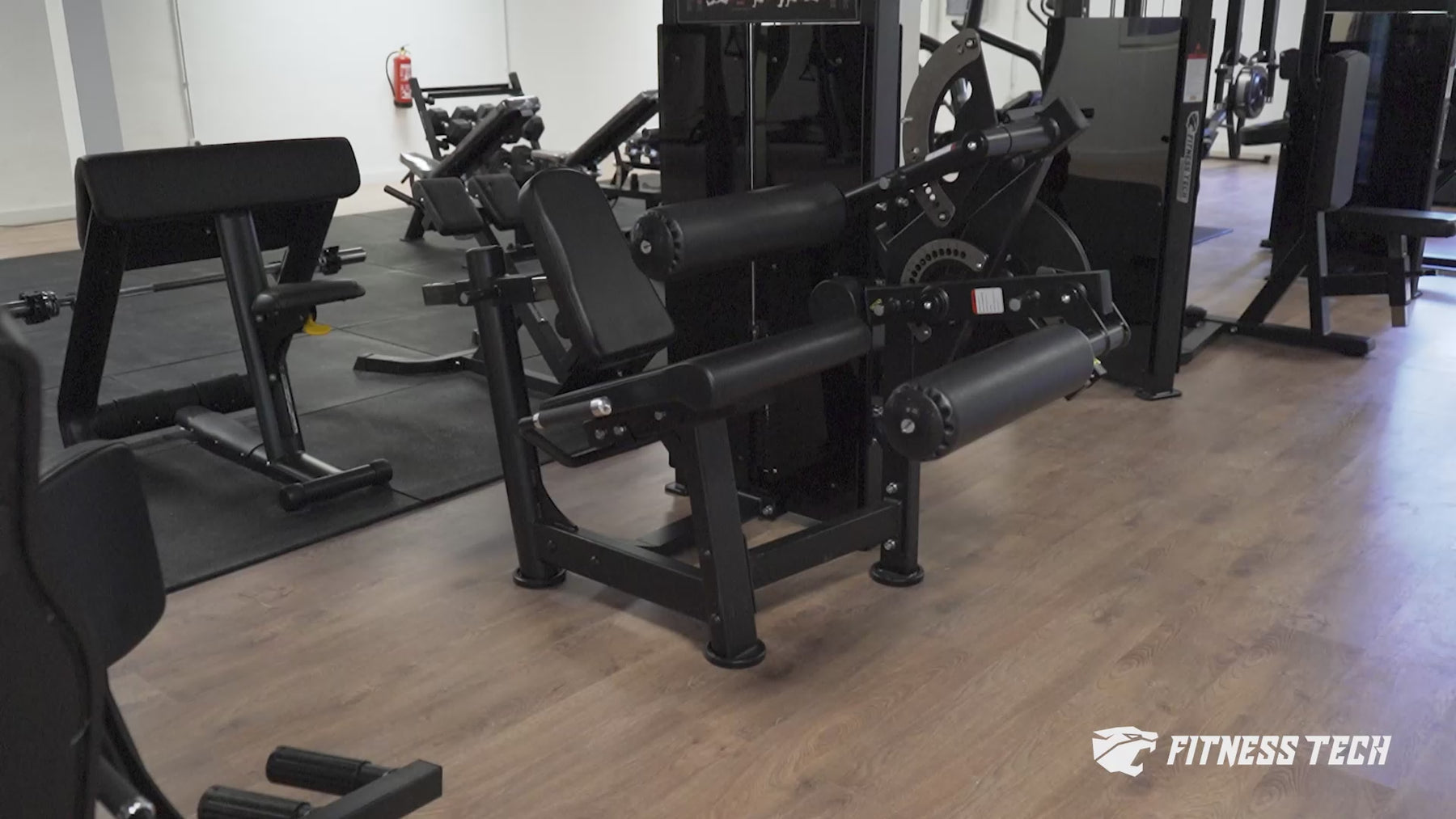

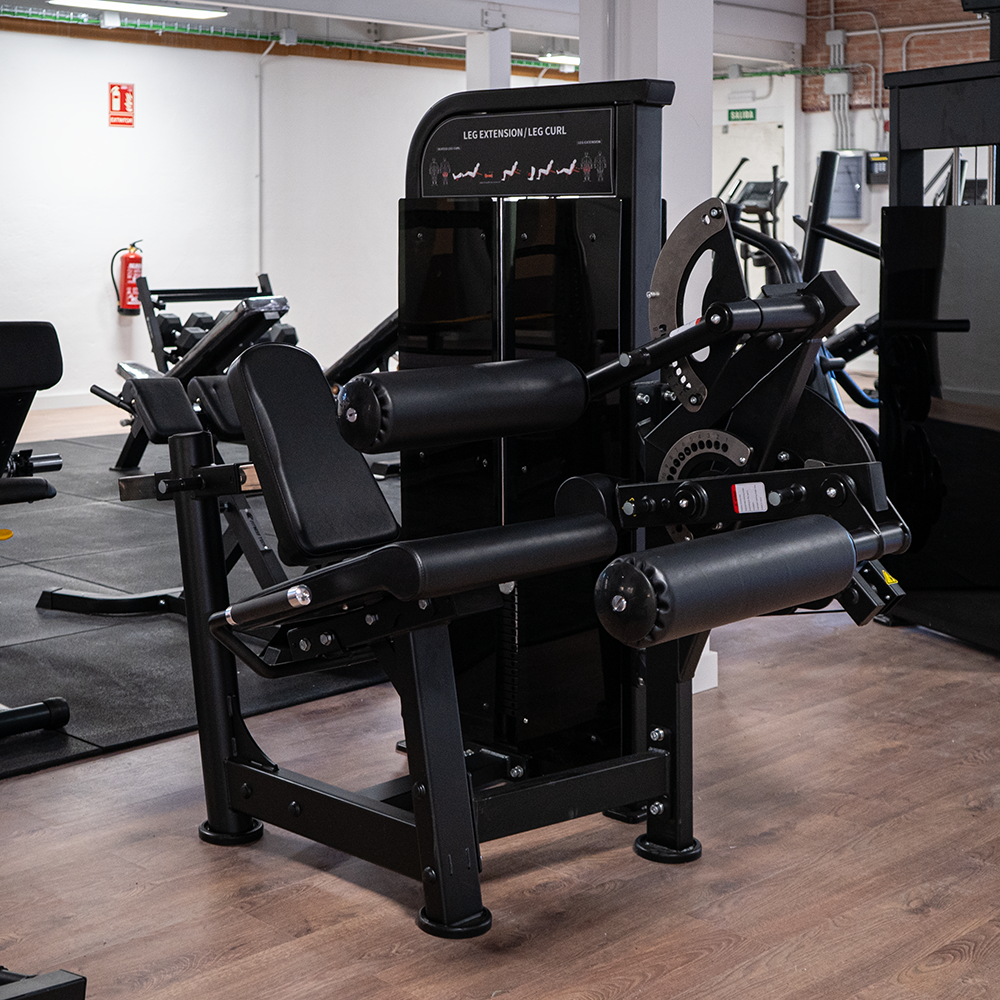

Quadriceps and hamstring | Dual selectorized machine - Compact Series

Quadriceps and Hamstring | Dual Selectorized Machine – Compact Series

The dual selectorized machine of the Quadriceps and Hamstring Compact Series is the ultimate solution to work both major leg muscle groups with a single machine. Designed to offer advanced biomechanics and structural robustness, this Compact version optimizes space without sacrificing power, precision, or durability.

Its selectorized load system with a 1:1 ratio provides progressive and balanced resistance, allowing fully controlled knee extension and flexion. The adjustable seat, backrest, and rollers facilitate adaptation to any user, ensuring an ergonomic posture and precise execution in both quadriceps extension and hamstring curl exercises.

Structural Strength and Comfort in Every Rep

Built on a 50 × 100 × 2.5 mm Q235 steel rectangular tube frame with anti-corrosion galvanized coating, this machine combines strength, durability, and a flawless professional aesthetic. The stainless steel guides and POM pulleys guarantee smooth, silent, and highly precise movement, while the high-density upholstery provides comfort even during extended training sessions. The Quadriceps and Hamstring Compact Series establishes itself as an essential machine for any gym or training center seeking versatility, efficiency, and performance in a single piece of equipment.

Main Features

• Professional dual design: combines two exercises in one machine to work quadriceps and hamstrings.
• Fluid and natural movement: selectorized system with a 1:1 ratio ensuring constant resistance.
• 120 kg weight stack: higher load capacity for leg training.

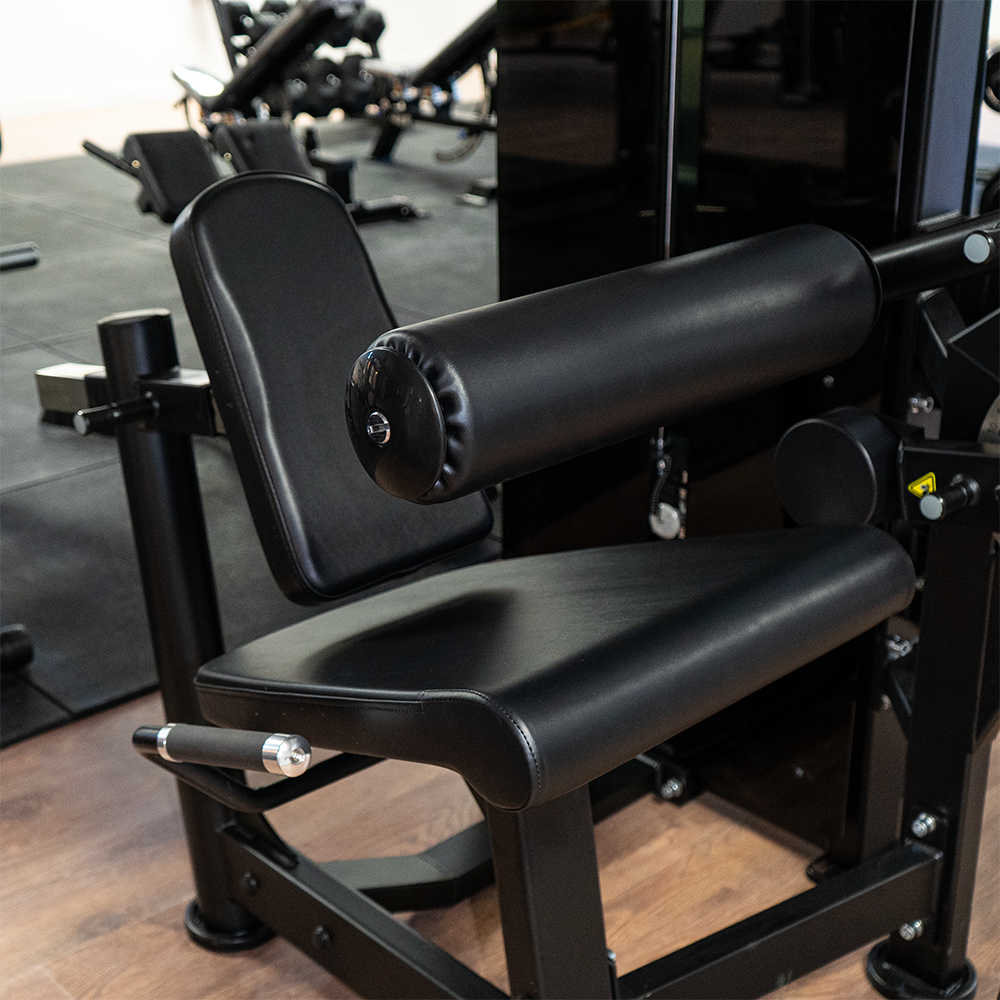

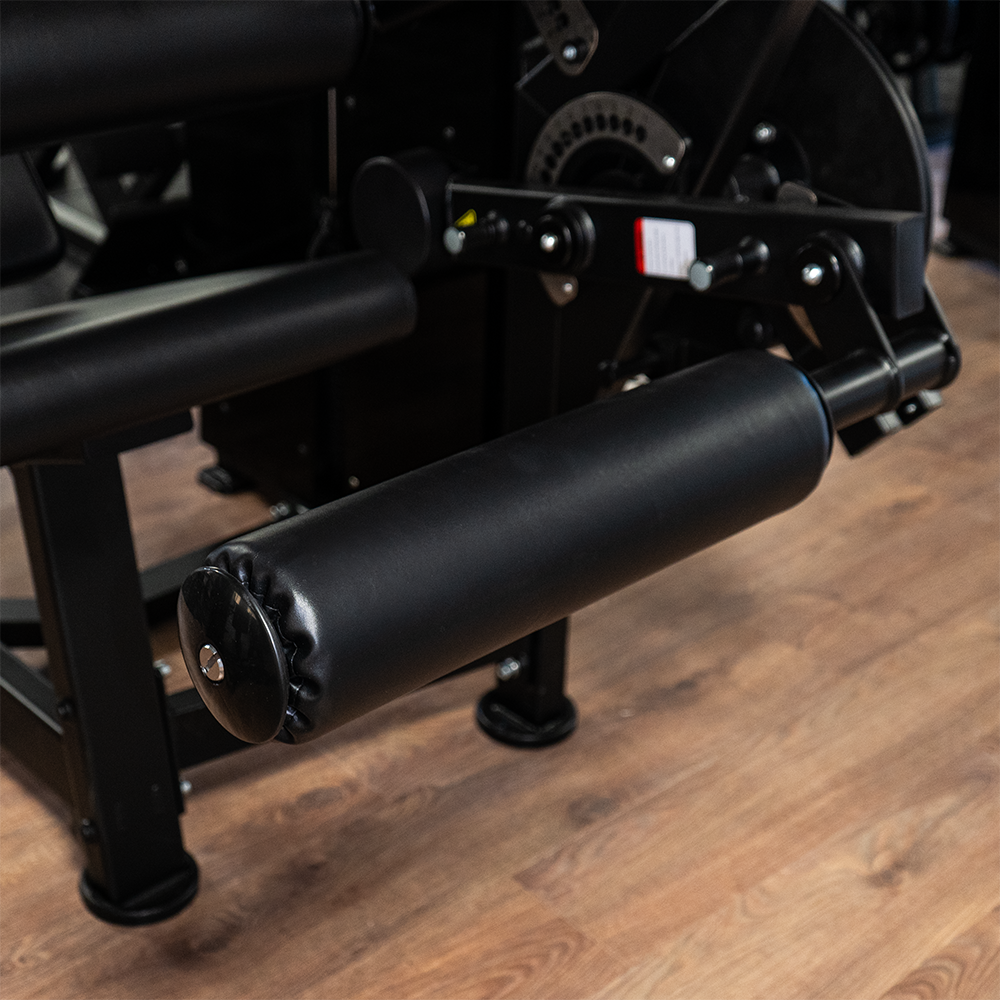

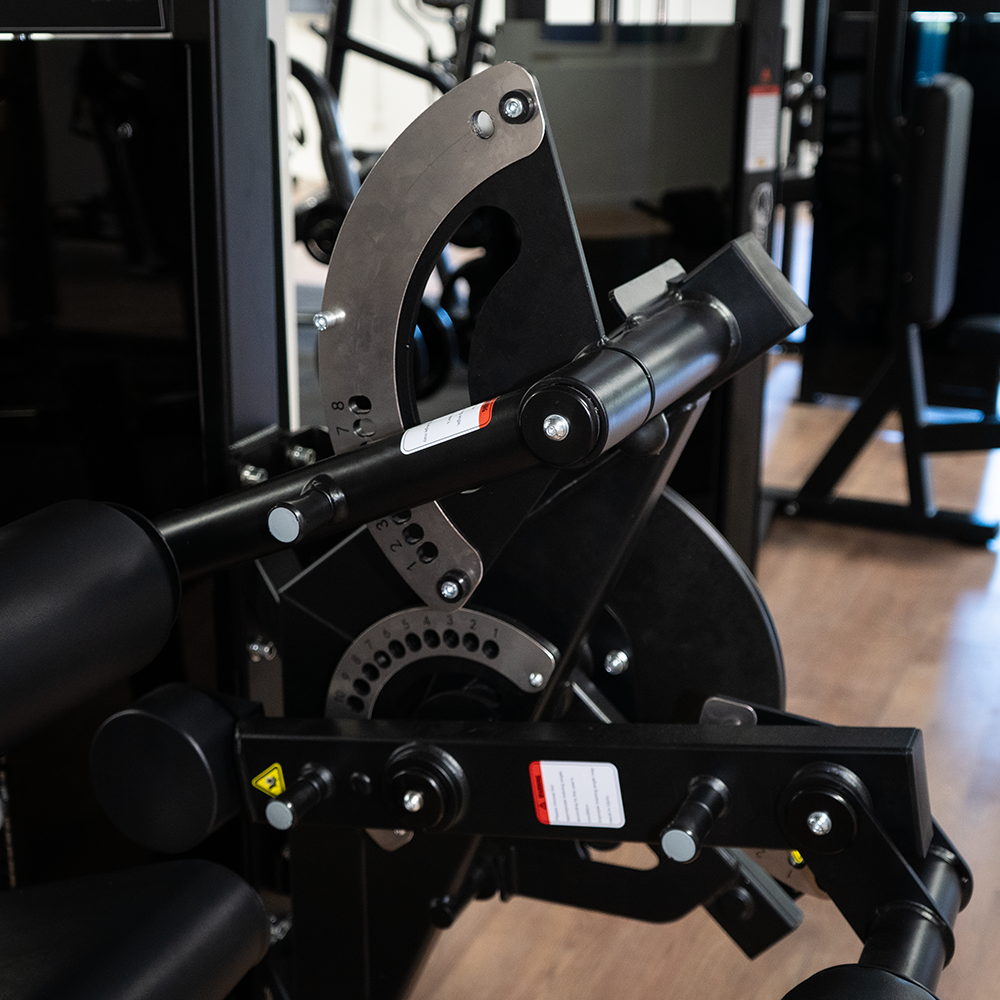

• Ergonomic adjustments: adjustable backrest, seat, and rollers to fit any user.
• Galvanized Q235 steel structure: 50 × 100 × 2.5 mm rectangular tube with anti-corrosion treatment for maximum durability.
• Stainless steel guides: precise sliding and high wear resistance.
• POM material pulleys: smooth, silent, and highly precise movement.
• Rubber-coated steel cable: smooth, durable, and silent transmission.
• High-density upholstery: foam with sweat-resistant synthetic leather, providing comfort and durability during long workouts.
• Compact format: maximum performance with a space-optimized design.

Technical Specifications

• Dimensions: 149 × 110 × 152 cm
• Weight: 334 kg
• Plate load: 120 kg
• Structure: Q235 steel rectangular tube (50 × 100 × 2.5 mm) with anti-corrosion galvanized coating
• Maximum user weight: 180 kg
• Load ratio: 1:1
• Guide material: stainless steel
• Pulley material: POM
• Cable material: steel with rubber coating
• Cable dimensions: Ø 4.8 mm · length 3.3 m
• Grips: TPV (vulcanized rubber) handles with aluminum finish
• Upholstery: high-density foam with sweat-resistant synthetic leather
• Certifications: CE and EN ISO 20957
